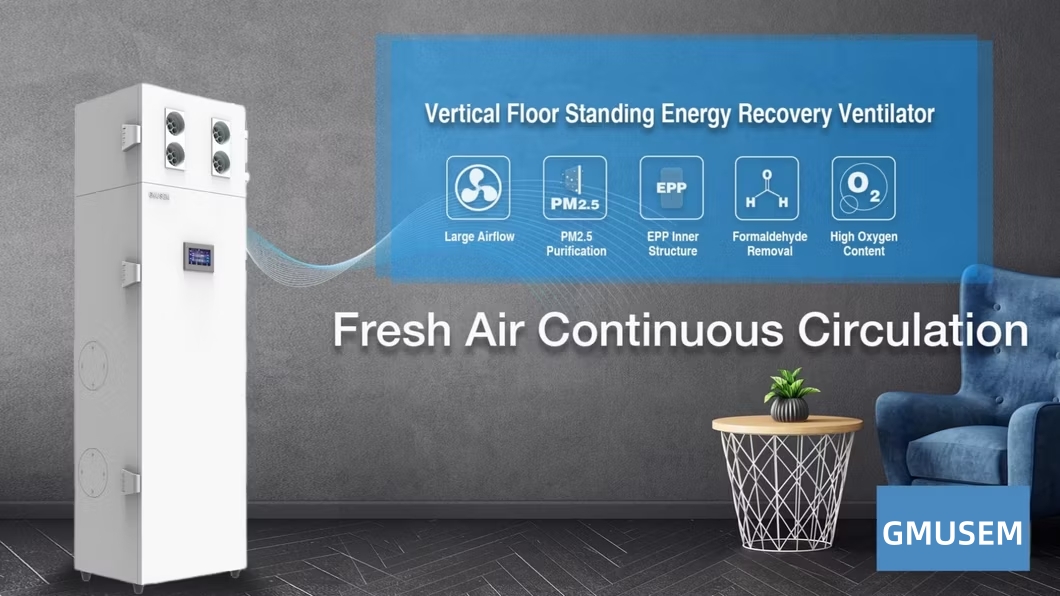

Floor Standing Energy Recovery Ventilator

Standalone air blower
  • Airflow:360/550m3/H
  • Filter:H13/H11/G4/HEPA
  • Control:Intelligent, BMS, CO2 Control, Humidity Control
  • Application:Shopping Malls, Libraries, Bars

325d3215824ced1_副本

详情-02

详情-03

详情-04

详情-05

详情-06

详情-07

Product Parameters

ModelJMS-AHEPF36GJMS-AHEPF60G

Airflow (m3/h)

360
600
Filtration euiciency (%)99.95%/HEPA99.95%/HEPA

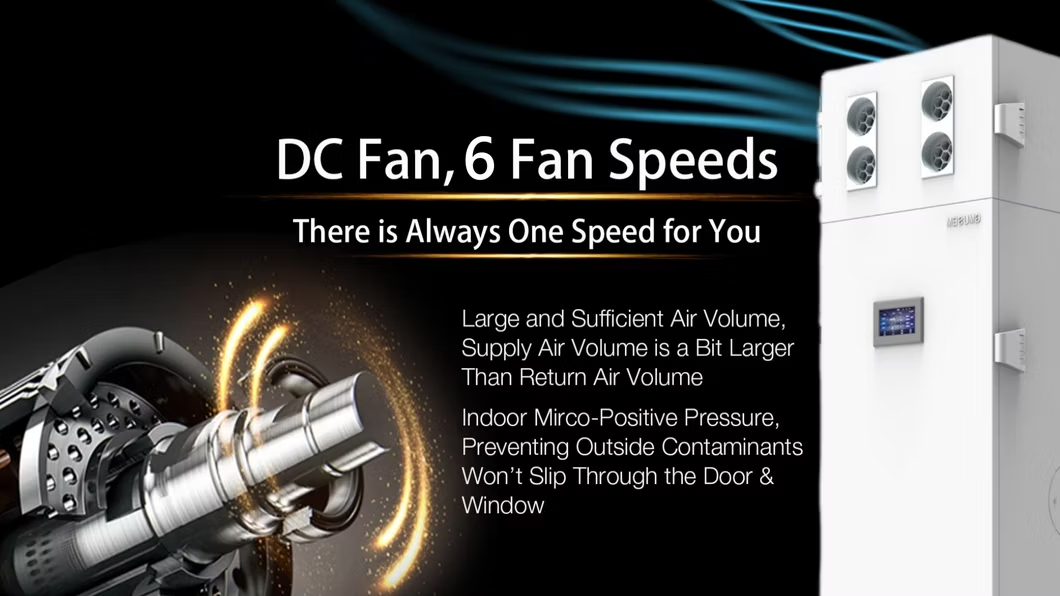

Speed 6Speed 6Speed
Power supply20V/50HZ/20-130W 220V/50HZ/40-185W
Noise dB<38><!--38--><45><!--45-->
Perational ModeManual / Auto / Timer Manual / Auto / Timer
Suitable room size (m2)50-120 100-240
Dimension (mm)1567*480*320MM 1567*480*320MM
Weight (kg) 62KG 62KG

详情-08详情-09

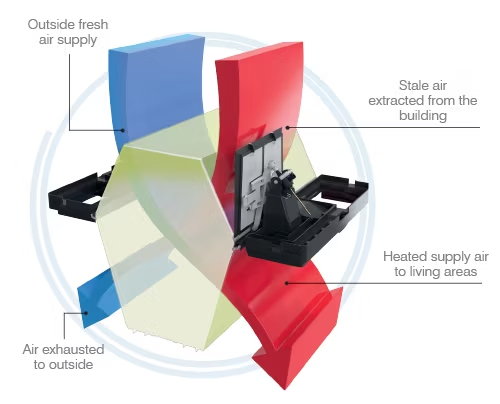

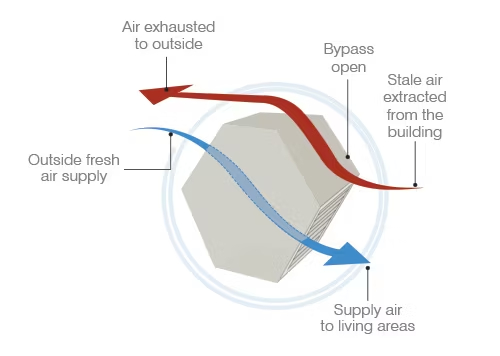

The floor standing erv comes packed with many nifty functions that help regulate temperature and air quality by integrating inherent climate conditions to deliver an optimal user experience while enhancing energy efficiency. Night-time Free cooling mode is one such feature that exploits air temperature differences by funneling cool evening air indoors during the summer months. Likewise, in the Automated Seasonal Operation mode .GMUSEM ERV senses the outdoor temperature and changes the operation mode automatically following the weather condition. This mode enables a bypass operation during the mild spring and autumn months, where the outdoor air temperature and humidity are adequate. The fresh outdoor air is introduced directly to the indoor space without exchanging heat with the outgoing indoor air - leading to cost-cutting.
