Wall Mounted ERV

The wall-mounted ventilator generates axial airflow by driving the fan blades with a motor, forcibly
  • Motor type: AC/DC/EC Optional
  • Filter:H13/H11/G4/HEPA
  • Airflow:150/200M3/H

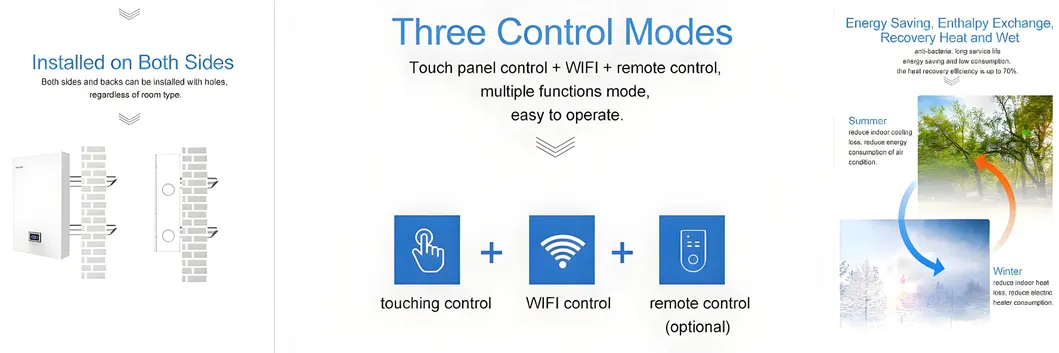

  • Control: CO2、Humidity、VOC Control


详情-01

详情-02

详情-03

详情-04

详情-05

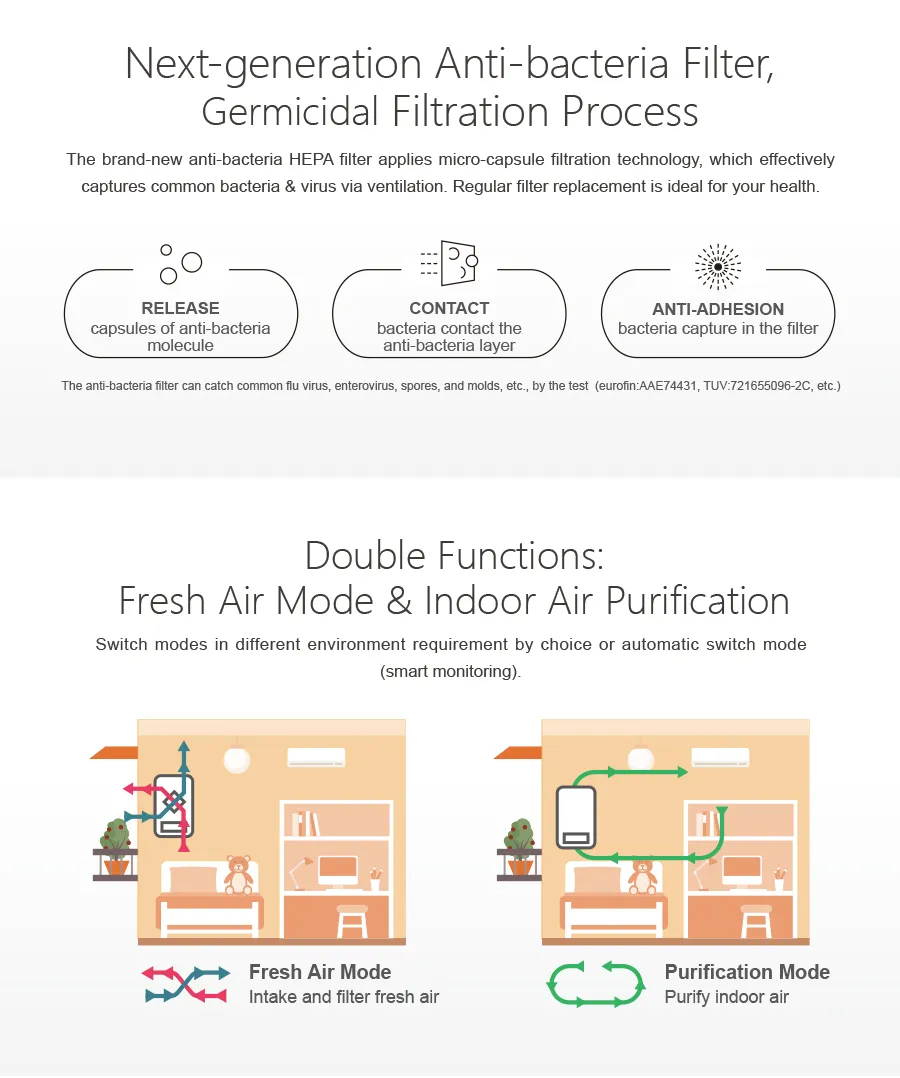

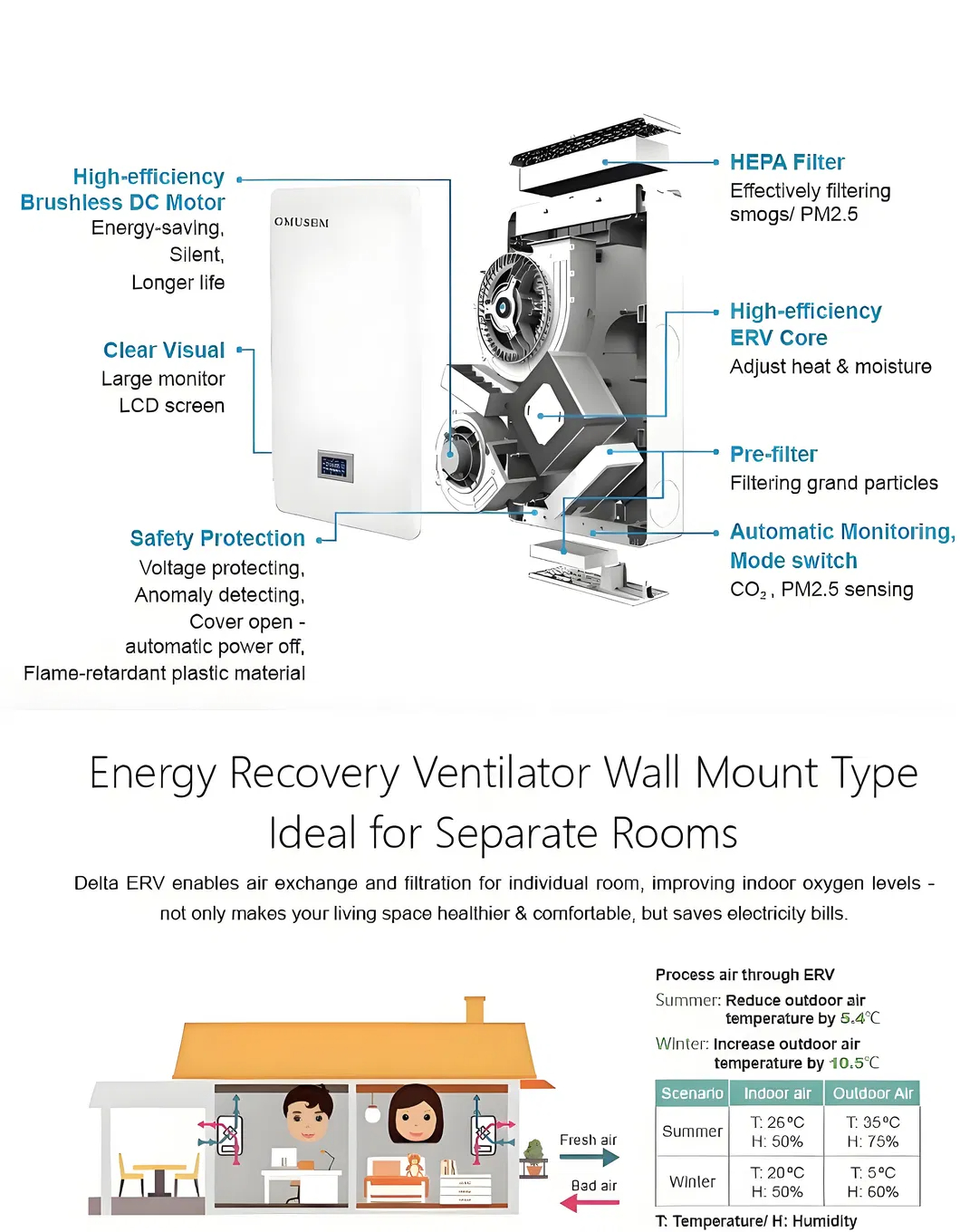

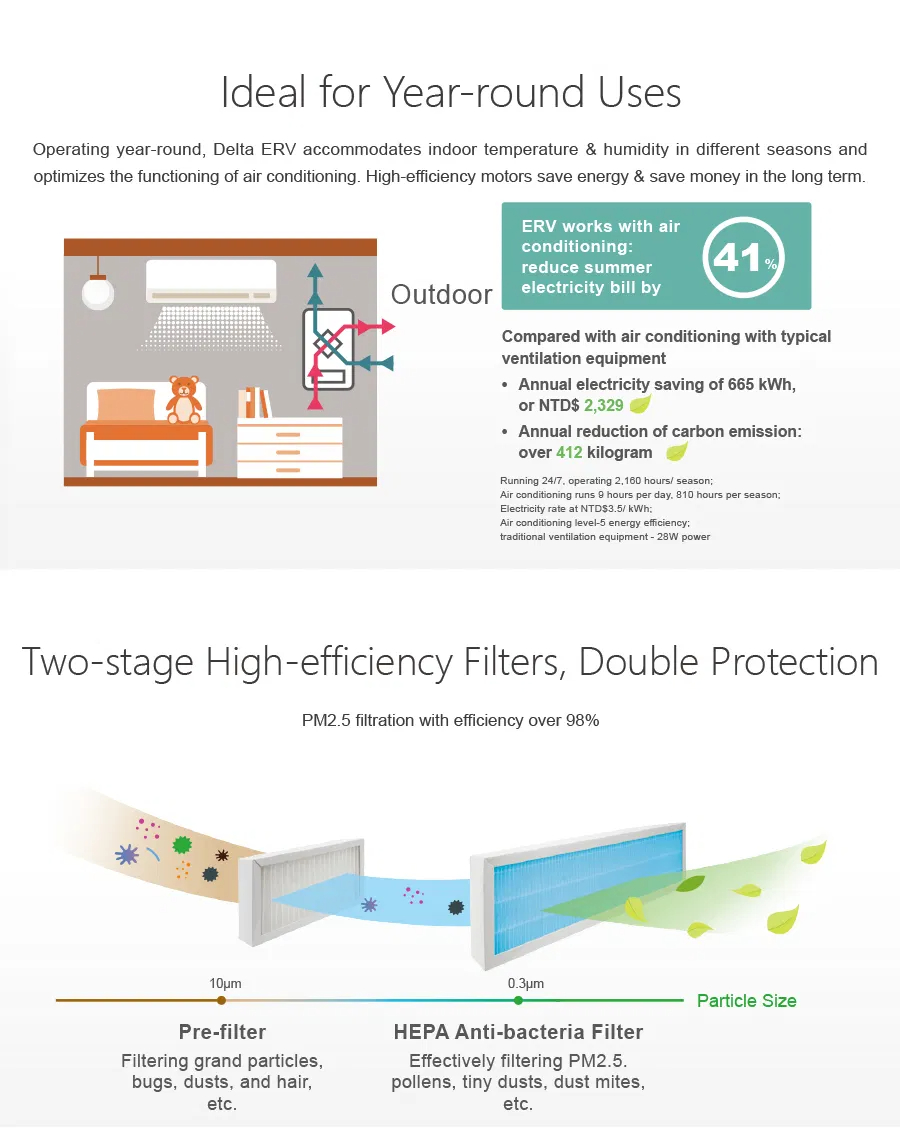

The ERV model isdesigned with slim shape, which is space-saving, easy-to-install and most suitable for a standalone room. The product adopts energy-saving brushless DC motor and high-efficiency two stage filters, effectively filtering smogs and PM2.5 that are harmful to human bodies, with purification efficiency rate up to 98%. The fresh air mode enables indoor/outdoor air exchange, while the air purification mode purifies the indoor air, just like an air purifier. Besides, the ERV can automatically monitor the indoor air quality (PM2.5, C02) and then switch modes smartly. The energy recovery core can adjust indoor heat and moisture, alleviating the loading of room air conditioner.

Model

JMS-AHEPF15B

JMS-AHEPF20B

Airflow (m3/h)

150

200

Filtration euiciency (%)

99.5%/HEPA

99.5%/HEPA

Speed

6Speed

6Speed

Power supply

220V/50HZ/7-21W

220V/50HZ/7-21W

Noise dB

<18><!--18-->

<30><!--30-->

Perational Mode

Manual / Auto / Timer

Manual / Auto / Timer

Suitable room size (m2)

50 - 120

100 - 240

Dimension (mm)

830*500*156MM

830*500*156MM
Weight (kg)27KG27KG



详情-06

详情-07
